3D Recreation Rendering 101 | TechSpot

You are enjoying the most recent Name of Mario: Deathduty Battleyard in your excellent gaming PC. You are a fantastic 4K extremely widescreen monitor, admiring the fantastic surroundings and complex element. Ever puzzled simply how these graphics received there? Interested in what the sport made your PC do to make them?

Welcome to our 101 in 3D recreation rendering: a newbie’s information to how one fundamental body of gaming goodness is made.

Yearly tons of of latest video games are launched across the globe – some are designed for cellphones, some for consoles, some for PCs. The vary of codecs and genres lined is simply as complete, however there’s one kind that’s presumably explored by recreation builders greater than every other form: 3D.

The primary ever of its ilk is considerably open to debate and a fast scan of the Guinness World Data database produces numerous solutions. We might decide Knight Lore by Final, launched in 1984, as a worthy starter however the pictures created in that recreation had been strictly talking 2D – no a part of the knowledge used is ever actually 3 dimensional.

So if we will perceive how a 3D recreation of right now makes its pictures, we’d like a special beginning instance: Profitable Run by Namco, round 1988. It was maybe the primary of its form to work out all the things in 3 dimensions from the beginning, utilizing methods that are not 1,000,000 miles away from what is going on on now. In fact, any recreation over 30 years previous is not going to actually be the identical as, say, Codemasters F1 2018, however the fundamental scheme of doing all of it is not vastly totally different.

On this article, we’ll stroll by the method a 3D recreation takes to supply a fundamental picture for a monitor or TV to show. We’ll begin with the tip outcome and ask ourselves: “What am I ?”

From there, we’ll analyze every step carried out to get that image we see. Alongside the way in which, we’ll cowl neat issues like vertices and pixels, textures and passes, buffers and shading, in addition to software program and directions. We’ll additionally check out the place the graphics card suits into all of this and why it is wanted. With this 101, you will take a look at your video games and PC in a brand new gentle, and recognize these graphics with somewhat extra admiration.

Features of a body: pixels and colours

Let’s fireplace up a 3D recreation, so we’ve got one thing to begin with, and for no purpose aside from it is in all probability probably the most meme-worthy PC recreation of all time… we’ll use Crytek’s 2007 launch Crysis.

Within the picture beneath, we’re trying a digital camera shot of the monitor displaying the sport.

This image is often known as a body, however what precisely is it that we’re ? Nicely, through the use of a digital camera with a macro lens, somewhat than an in-game screenshot, we are able to do a spot of CSI: TechSpot and demand somebody enhances it!

Sadly display glare and background lighting is getting in the way in which of the picture element, but when we improve it only a bit extra…

We are able to see that the body on the monitor is made up of a grid of individually coloured components and if we glance actually shut, the blocks themselves are constructed out of three smaller bits. Every triplet is named a pixel (quick for image ingredient) and the vast majority of screens paint them utilizing three colours: pink, inexperienced, and blue (aka RGB). For each new body displayed by the monitor, an inventory of 1000’s, if not tens of millions, of RGB values must be labored out and saved in a portion of reminiscence that the monitor can entry. Such blocks of reminiscence are known as buffers, so naturally the monitor is given the contents of one thing generally known as a body buffer.

That is truly the tip level that we’re beginning with, so now we have to head to the start and undergo the method to get there. The title rendering is commonly used to explain this however the actuality is that it is a lengthy checklist of linked however separate phases, which are fairly totally different to one another, when it comes to what occurs. Consider it as being like being a chef and making a meal worthy of a Michelin star restaurant: the tip result’s a plate of tasty meals, however a lot must be executed earlier than you may tuck in. And similar to with cooking, rendering wants some fundamental components.

The constructing blocks wanted: fashions and textures

The basic constructing blocks to any 3D recreation are the visible belongings that may populate the world to be rendered. Motion pictures, TV reveals, theatre productions and the like, all want actors, costumes, props, backdrops, lights – the checklist is fairly massive.

3D video games are not any totally different and all the things seen in a generated body can have been designed by artists and modellers. To assist visualize this, let’s go old-school and check out a mannequin from id Software program’s Quake II:

Launched over 25 years in the past, Quake II was a technological tour de power, though it is honest to say that, like several 3D recreation twenty years previous, the fashions look considerably blocky. However this permits us to extra simply see what this asset is made out of.

Within the first picture, we are able to see that the chunky fella is constructed out linked triangles – the corners of every are known as vertices or vertex for certainly one of them. Every vertex acts as some extent in house, so can have at the least 3 numbers to explain it, particularly x,y,z-coordinates. Nevertheless, a 3D recreation wants greater than this, and each vertex can have some extra values, reminiscent of the colour of the vertex, the route it is going through in (sure, factors cannot truly face anyplace… simply roll with it!), how shiny it’s, whether or not it’s translucent or not, and so forth.

One particular set of values that vertices all the time have are to do with texture maps. These are an image of the ‘garments’ the mannequin has to put on, however since it’s a flat picture, the map has to include a view for each attainable route we could find yourself trying on the mannequin from. In our Quake II instance, we are able to see that it’s only a fairly fundamental method: entrance, again, and sides (of the arms).

A contemporary 3D recreation will even have a number of texture maps for the fashions, every packed stuffed with element, with no wasted clean house in them; a number of the maps will not appear to be supplies or characteristic, however as a substitute present details about how gentle will bounce off the floor. Every vertex can have a set of coordinates within the mannequin’s related texture map, in order that it may be ‘stitched’ on the vertex – because of this if the vertex is ever moved, the feel strikes with it.

So in a 3D rendered world, all the things seen will begin as a group of vertices and texture maps. They’re collated into reminiscence buffers that hyperlink collectively – a vertex buffer comprises the details about the vertices; an index buffer tells us how the vertices hook up with kind shapes; a useful resource buffer comprises the textures and parts of reminiscence put aside for use later within the rendering course of; a command buffer the checklist of directions of what to do with all of it.

This all varieties the required framework that will likely be used to create the ultimate grid of coloured pixels. For some video games, it may be an enormous quantity of knowledge as a result of it will be very gradual to recreate the buffers for each new body. Video games both retailer the entire info wanted, to kind your complete world that would probably be considered, within the buffers or retailer sufficient to cowl a variety of views, after which replace it as required. For instance, a racing recreation like F1 2018 can have all the things in a single massive assortment of buffers, whereas an open world recreation, reminiscent of Bethesda’s Skyrim, will transfer knowledge out and in of the buffers, because the digital camera strikes the world over.

Setting out the scene: The vertex stage

With all of the visible info handy, a recreation will then start the method to get it visually displayed. To start with, the scene begins in a default place, with fashions, lights, and so forth, all positioned in a fundamental method. This may be body ‘zero’ – the place to begin of the graphics and infrequently is not displayed, simply processed to get issues going.

To assist reveal what’s going on with the primary stage of the rendering course of, we’ll use an internet instrument on the Actual-Time Rendering web site. Let’s open up with a really fundamental ‘recreation’: one cuboid on the bottom.

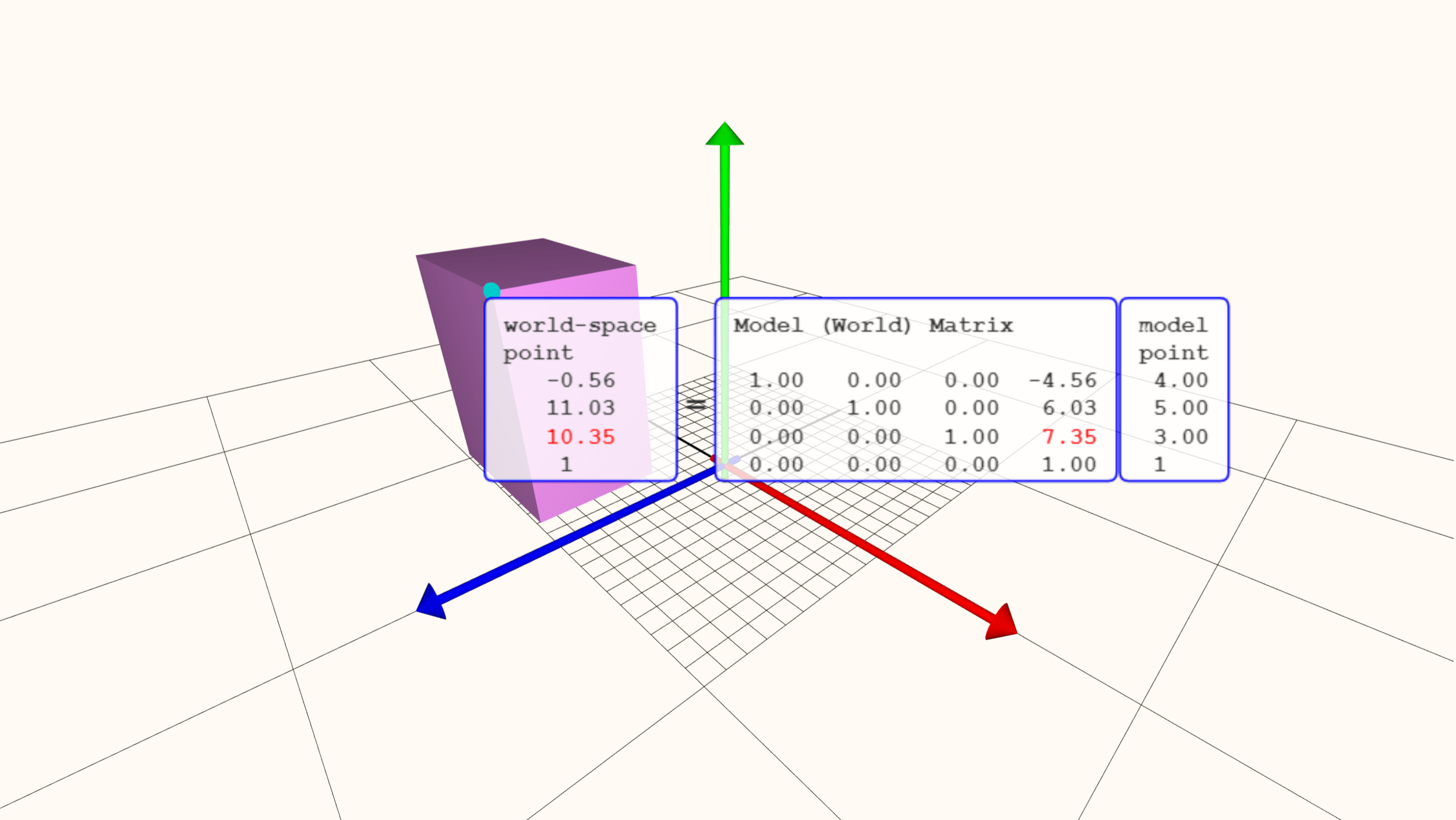

This explicit form comprises 8 vertices, every one described by way of an inventory of numbers, and between them they make a mannequin comprising 12 triangles. One triangle and even one entire object is called a primitive. As these primitives are moved, rotated, and scaled, the numbers are run by a sequence of math operations and replace accordingly.

Notice that the mannequin’s level numbers have not modified, simply the values that point out the place it’s on the planet. Masking the maths concerned is past the scope of this 101, however the necessary a part of this course of is that it is all about transferring all the things to the place it must be first. Then, it is time for a spot of coloring.

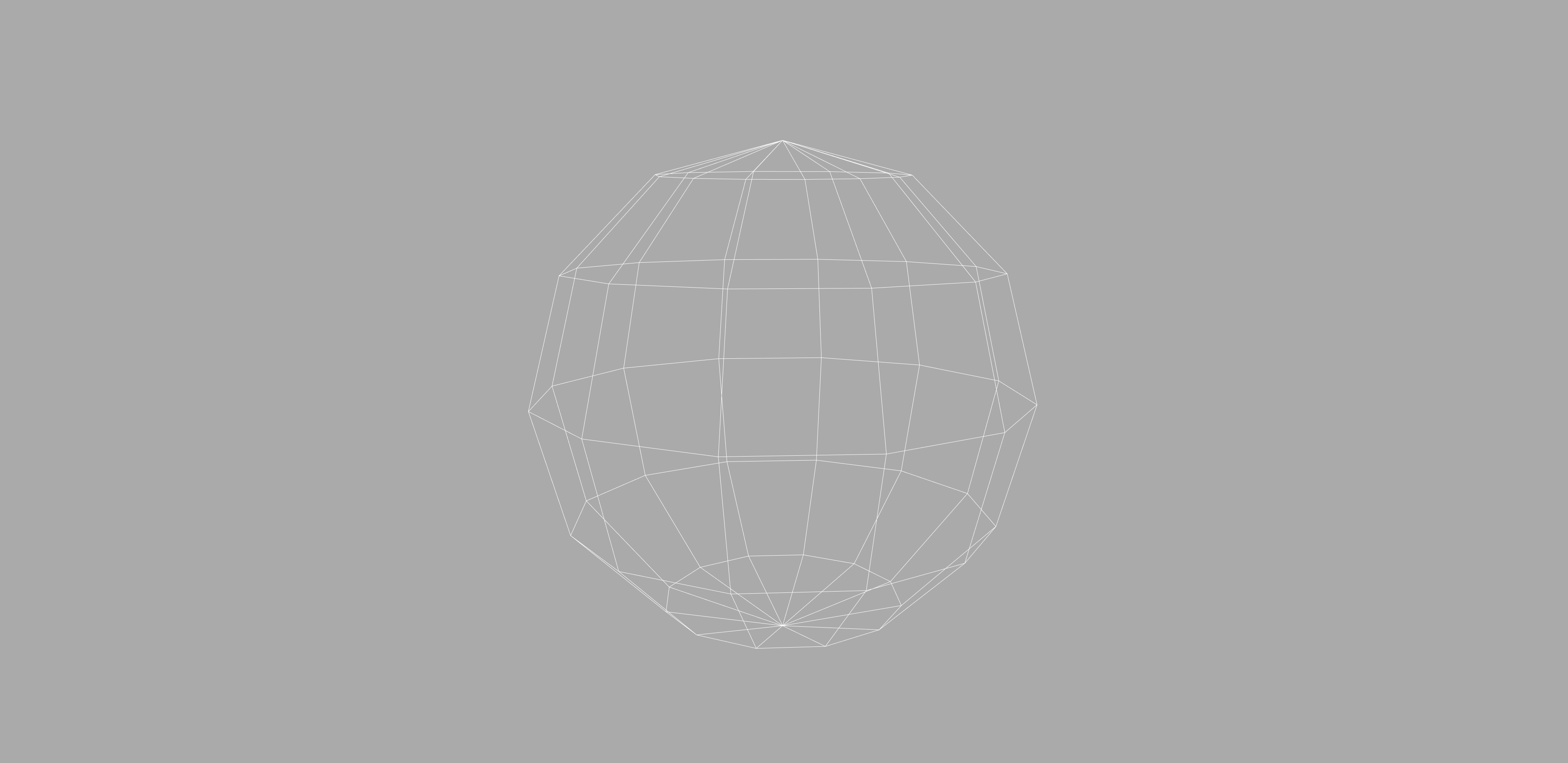

Let’s use a special mannequin, with greater than 10 occasions the quantity of vertices the earlier cuboid had. Probably the most fundamental kind of coloration processing takes the color of every vertex after which calculates how the floor of floor modifications between them; this is called interpolation.

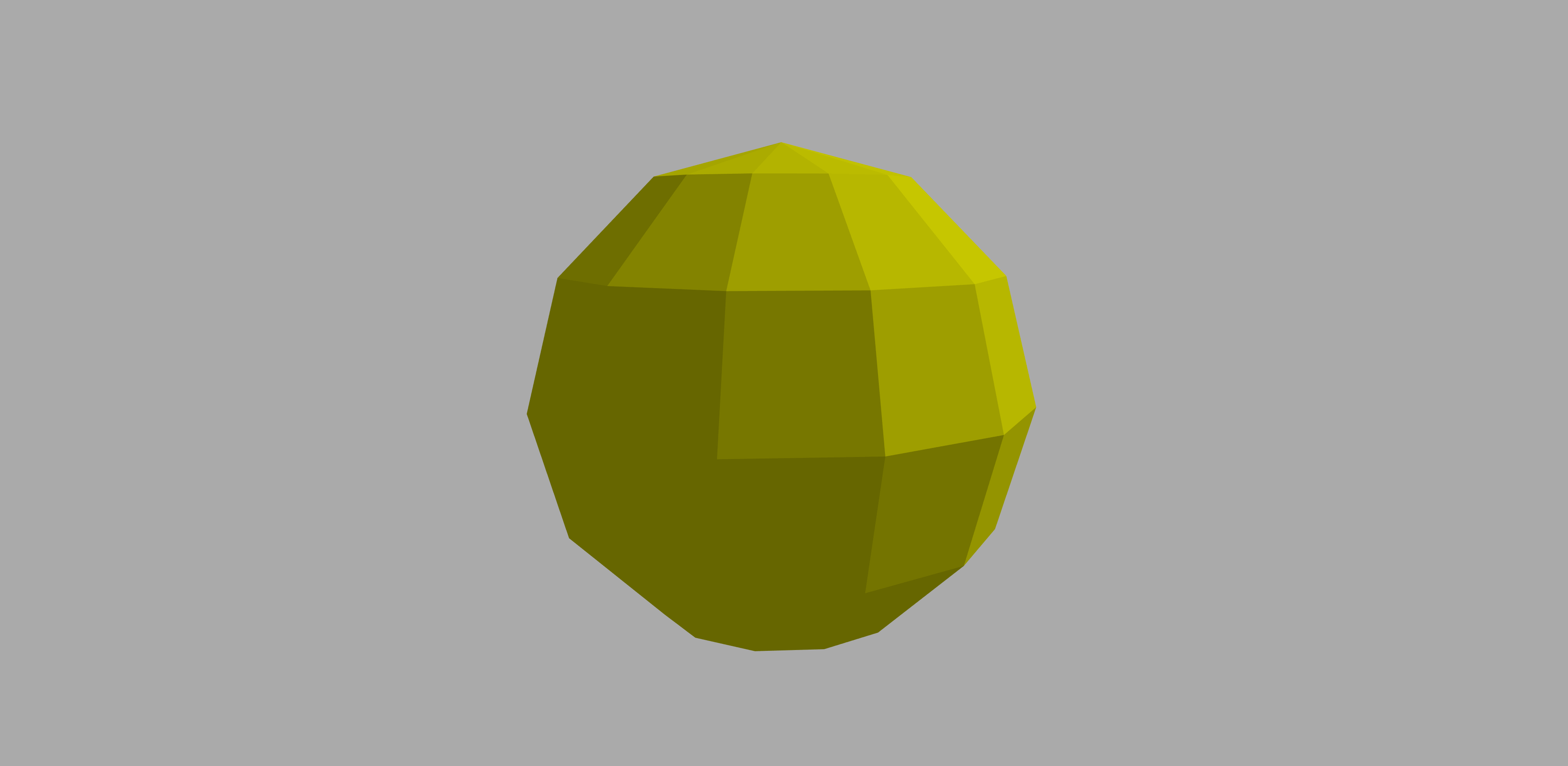

Having extra vertices in a mannequin not solely helps to have a extra real looking asset, however it additionally produces higher outcomes with the colour interpolation.

On this stage of the rendering sequence, the impact of lights within the scene will be explored intimately; for instance, how the mannequin’s supplies replicate the sunshine, will be launched. Such calculations must take into consideration the place and route of the digital camera viewing the world, in addition to the place and route of the lights.

There’s a entire array of various math methods that may be employed right here; some easy, some very sophisticated. Within the above picture, we are able to see that the method on the appropriate produces nicer trying and extra real looking outcomes however, not surprisingly, it takes longer to work out.

It is value noting at this level that we’re objects with a low variety of vertices in comparison with a cutting-edge 3D recreation. Return a bit on this article and look fastidiously on the picture of Crysis: there’s over 1,000,000 triangles in that one scene alone. We are able to get a visible sense of what number of triangles are being pushed round in a contemporary recreation through the use of Unigine Valley benchmark.

Each object on this picture is modelled by vertices linked collectively, in order that they make primitives consisting of triangles. The benchmark permits us to run a wireframe mode that makes this system render the perimeters of every triangle with a brilliant white line.

The timber, vegetation, rocks, floor, mountains – all of them constructed out of triangles, and each single certainly one of them has been calculated for its place, route, and coloration – all considering the place of the sunshine supply, and the place and route of the digital camera. All the modifications executed to the vertices needs to be fed again to the sport, in order that it is aware of the place all the things is for the subsequent body to be rendered; that is executed by updating the vertex buffer.

Astonishingly although, this is not the laborious a part of the rendering course of and with the appropriate {hardware}, it is all completed in just some thousandths of a second! Onto the subsequent stage.

Shedding a dimension: Rasterization

After all of the vertices have been labored by and our 3D scene is finalized when it comes to the place all the things is meant to be, the rendering course of strikes onto a really vital stage. To date, the sport has been actually 3 dimensional however the ultimate body is not – meaning a sequence of modifications should happen to transform the considered world from a 3D house containing 1000’s of linked factors right into a 2D canvas of separate coloured pixels. For many video games, this course of entails at the least two steps: display house projection and rasterization.

Utilizing the online rendering instrument once more, we are able to power it to indicate how the world quantity is initially became a flat picture. The place of the digital camera, viewing the 3D scene, is on the far left; the traces prolonged from this level create what is named a frustum (type of like a pyramid on its aspect) and all the things throughout the frustum might probably seem within the ultimate body.

A little bit approach into the frustum is the viewport — that is basically what the monitor will present, and an entire stack of math is used to challenge all the things throughout the frustum onto the viewport, from the attitude of the digital camera.

Though the graphics on the viewport seem 2D, the info inside continues to be truly 3D and this info is then used to work out which primitives will likely be seen or overlap. This may be surprisingly laborious to do as a result of a primitive would possibly forged a shadow within the recreation that may be seen, even when the primitive cannot.

The eradicating of primitives is named culling and might make a major distinction to how rapidly the entire body is rendered. As soon as this has all been executed – sorting the seen and non-visible primitives, binning triangles that lie outdoors of the frustum, and so forth – the final stage of 3D is closed down and the body turns into totally 2D by rasterization.

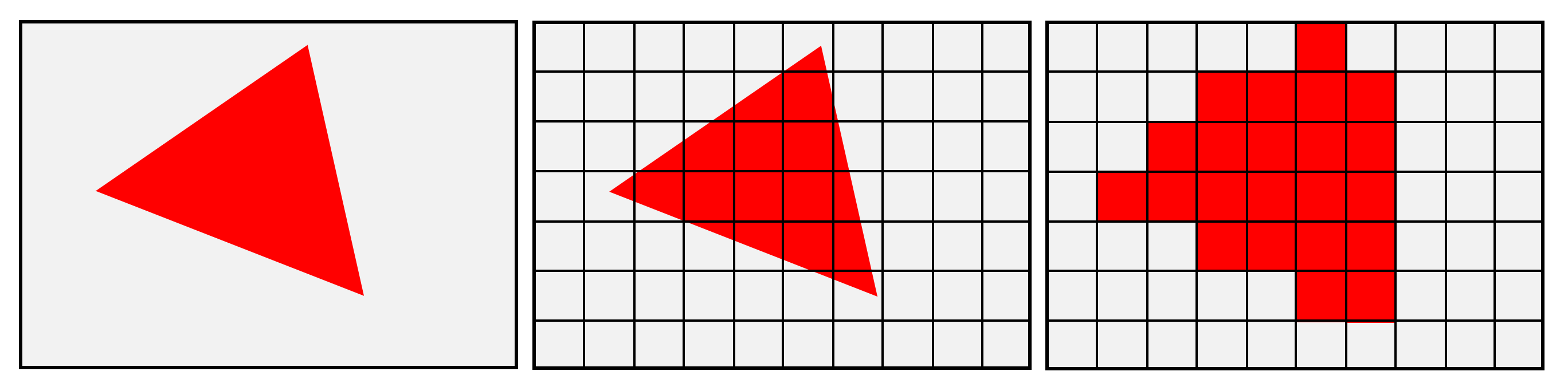

The above picture reveals a quite simple instance of a body containing one primitive. The grid that the body’s pixels make is in comparison with the perimeters of the form beneath, and the place they overlap, a pixel is marked for processing. Granted the tip outcome within the instance proven does not look very like the unique triangle however that is as a result of we’re not utilizing sufficient pixels.

This has resulted in an issue known as aliasing, though there are many methods of coping with this. This is the reason altering the decision (the overall variety of pixels used within the body) of a recreation has such a huge impact on the way it seems to be: not solely do the pixels higher characterize the form of the primitives however it reduces the influence of the undesirable aliasing.

As soon as this a part of the rendering sequence is completed, it is onto to the large one: the ultimate coloring of all of the pixels within the body.

Deliver within the lights: The pixel stage

So now we come to probably the most difficult of all of the steps within the rendering chain. Years in the past, this was nothing greater than the wrapping of the mannequin’s garments (aka the textures) onto the objects on the planet, utilizing the knowledge within the pixels (initially from the vertices).

The issue right here is that whereas the textures and the body are all 2D, the world to which they had been hooked up has been twisted, moved, and reshaped within the vertex stage. But extra math is employed to account for this, however the outcomes can generate some bizarre issues.

On this picture, a easy checkerboard texture map is being utilized to a flat floor that stretches off into the space. The result’s a jarring mess, with aliasing rearing its ugly head once more.

The answer entails smaller variations of the feel maps (generally known as mipmaps), the repeated use of knowledge taken from these textures (known as filtering), and even extra math, to convey all of it collectively. The impact of that is fairly pronounced:

This was actually laborious work for any recreation to do however that is not the case, as a result of the liberal use of different visible results, reminiscent of reflections and shadows, signifies that the processing of the textures simply turns into a comparatively small a part of the pixel processing stage.

Enjoying video games at increased resolutions additionally generates the next workload within the rasterization and pixel phases of the rendering course of, however has comparatively little influence within the vertex stage. Though the preliminary coloring on account of lights is completed within the vertex stage, fancier lighting results can be employed right here.

Within the above picture, we are able to not simply see the colour modifications between the triangles, giving us the impression that it is a clean, seamless object. On this explicit instance, the sphere is definitely made up from the identical variety of triangles that we noticed in the inexperienced sphere earlier on this article, however the pixel coloring routine gives the look that it’s has significantly extra triangles.

In a number of video games, the pixel stage must be run just a few occasions. For instance, a mirror or lake floor reflecting the world, because it seems to be from the digital camera, must have the world rendered to start with. Every run by is named a cross and one body can simply contain 4 or extra passes to supply the ultimate picture.

Generally the vertex stage must be executed once more, too, to redraw the world from a special perspective and use that view as a part of the scene considered by the sport participant. This requires using render targets – buffers that act as the ultimate retailer for the body however can be utilized as textures in one other cross.

To get a deeper understanding of the potential complexity of the pixel stage, learn Adrian Courrèges’ body evaluation of Doom 2016 and marvel on the unimaginable quantity of steps required to make a single body in that recreation.

All of this work on the body must be saved to a buffer, whether or not as a completed outcome or a short lived retailer, and usually, a recreation can have at the least two buffers on the go for the ultimate view: one will likely be “work in progress” and the opposite is both ready for the monitor to entry it or is within the strategy of being displayed.

There all the time must be a body buffer out there to render into, so as soon as they’re all full, an motion must happen to maneuver issues alongside and begin a recent buffer. The final half in signing off a body is a straightforward command (e.g. current) and with this, the ultimate body buffers are swapped about, the monitor will get the final body rendered and the subsequent one will be began.

On this picture, from Murderer’s Creed Odyssey, we’re trying on the contents of a completed body buffer. Consider it being like a spreadsheet, with rows and columns of cells, containing nothing greater than a quantity. These values are despatched to the monitor or TV within the type of an electrical sign, and coloration of the display’s pixels are altered to the required values.

As a result of we will not do CSI: TechSpot with our eyes, we see a flat, steady image however our brains interpret it as having depth – i.e. 3D. One body of gaming goodness, however with a lot occurring behind the scenes (pardon the pun), it is value taking a look at how programmers deal with all of it.

Managing the method: APIs and directions

Determining methods to make a recreation carry out and handle all of this work (the maths, vertices, textures, lights, buffers, you title it…) is a mammoth process. Thankfully, there’s assist in the shape of what’s known as an software programming interface or API for brief.

APIs for rendering cut back the general complexity by providing constructions, guidelines, and libraries of code, that enable programmers to make use of simplified directions which are unbiased of any {hardware} concerned. Decide any 3D recreation, launched in previous 5 years for the PC, and it’ll have been created utilizing certainly one of three well-known APIs: Direct3D, OpenGL, or Vulkan. There are others, particularly within the cell scene, however we’ll persist with these ones for this text.

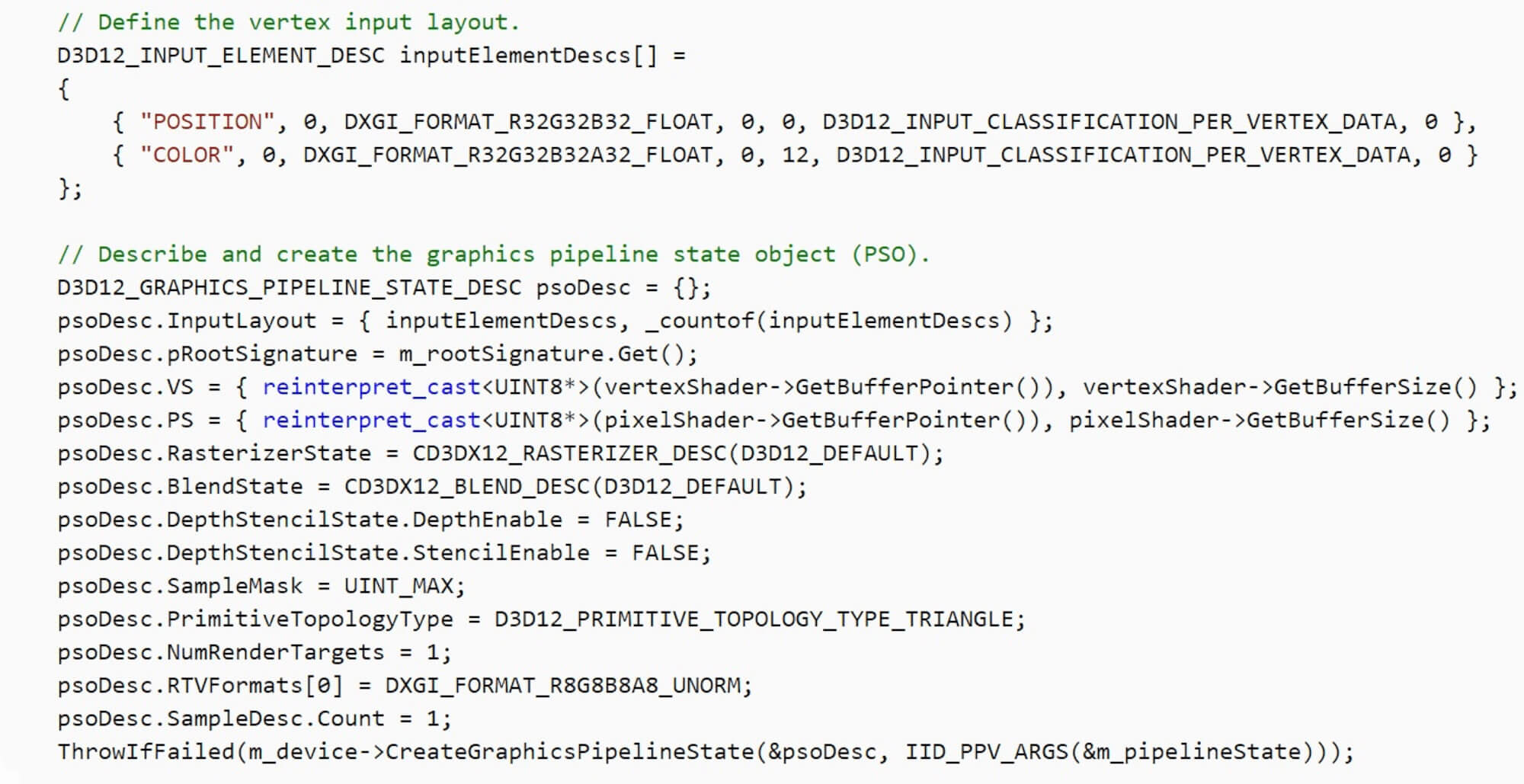

Whereas there are variations when it comes to the wording of directions and operations (e.g. a block of code to course of pixels in DirectX is named a pixel shader; in Vulkan, it is known as a fragment shader), the tip results of the rendered body is not, or extra somewhat, should not be totally different.

The place there will likely be a distinction involves right down to what {hardware} is used to do all of the rendering. It is because the directions issued utilizing the API must be translated for the {hardware} to carry out – that is dealt with by the gadget’s drivers and {hardware} producers need to dedicate a number of sources and time to making sure the drivers do the conversion as rapidly and accurately as attainable.

Let’s use an earlier beta model of Croteam’s 2014 recreation The Talos Precept to reveal this, because it helps the three APIs we have talked about. To amplify the variations that the mixture of drivers and interfaces can generally produce, we ran the usual built-in benchmark on most visible settings at a decision of 1080p.

The PC used ran at default clocks and sported an Intel Core i7-9700K, Nvidia Titan X (Pascal) and 32 GB of DDR4 RAM.

  • DirectX 9 = 188.4 fps common
  • DirectX 11 = 202.3 fps common
  • OpenGL = 87.9 fps common
  • Vulkan = 189.4 fps common

A full evaluation of the implications behind these figures is not throughout the intention of this text, and so they definitely don’t imply that one API is ‘higher’ than one other (this was a beta model, remember), so we’ll depart issues with the comment that programming for various APIs current numerous challenges and, for the second, there’ll all the time be some variation in efficiency.

Usually talking, recreation builders will select the API they’re most skilled in working with and optimize their code on that foundation. Generally the phrase engine is used to explain the rendering code, however technically an engine is the complete package deal that handles the entire points in a recreation, not simply its graphics.

Creating a whole program, from scratch, to render a 3D recreation is not any easy factor, which is why so many video games right now licence full techniques from different builders (e.g. Unreal Engine); you will get a way of the size by viewing the open supply engine for Quake and flick through the gl_draw.c file – this single merchandise comprises the directions for numerous rendering operations carried out within the recreation, and represents only a small a part of the entire engine.

Quake is over 25 years previous, and the complete recreation (together with the entire belongings, sounds, music, and so forth) is 55 MB in measurement; for distinction, Far Cry 5 retains simply the shaders utilized by the sport in a file that is 62 MB in measurement.

Time is all the things: Utilizing the appropriate {hardware}

Every thing that we’ve got described to date will be calculated and processed by the CPU of any laptop system; fashionable x86-64 processors simply assist the entire math required and have devoted components in them for such issues. Nevertheless, doing this work to render one body entails quite a bit repetitive calculations and calls for a major quantity of parallel processing.

CPUs aren’t in the end designed for this, as they’re far too normal by required design. Specialised chips for this type of work are, in fact GPUs (graphics processing models), and they’re constructed to do the maths wanted by the likes DirectX, OpenGL, and Vulkan in a short time and massively in parallel.

A method of demonstrating that is through the use of a benchmark that enables us to render a body utilizing a CPU after which utilizing specialised {hardware}. We’ll use V-ray NEXT; this instrument truly does ray-tracing somewhat than the rendering we have been on this article, however a lot of the quantity crunching requires comparable {hardware} points.

To achieve a way of the distinction between what a CPU can do and what the appropriate, custom-designed {hardware} can obtain, we ran the V-ray GPU benchmark in 3 modes: CPU solely, GPU solely, after which CPU+GPU collectively. The outcomes are markedly totally different:

  • CPU solely check = 53 mpaths
  • GPU solely check = 251 mpaths
  • CPU+GPU check = 299 mpaths

We are able to ignore the models of measurement on this benchmark, as a 5x distinction in output is not any trivial matter. However this is not a really game-like check, so let’s strive one thing else and go a bit old-school with 3DMark03. Operating the straightforward Wings of Fury check, we are able to power it to do the entire vertex shaders (i.e. the entire routines executed to maneuver and coloration triangles) utilizing the CPU.

The result should not actually come as a shock however nonetheless, it is extra pronounced than we noticed within the V-ray check:

  • CPU vertex shaders = 77 fps on common
  • GPU vertex shaders = 1580 fps on common

With the CPU dealing with the entire vertex calculations, every body was taking 13 milliseconds on common to be rendered and displayed; pushing that math onto the GPU drops this time proper right down to 0.6 milliseconds. In different phrases, it was greater than 20 occasions quicker.

The distinction is much more outstanding if we strive probably the most advanced check, Mom Nature, within the benchmark. With CPU processed vertex shaders, the typical outcome was a paltry 3.1 fps! Deliver within the GPU and the typical body charge rises to 1388 fps: almost 450 occasions faster. Now, remember that 3DMark03 is 20 years previous, and the check solely processed the vertices on the CPU – rasterization and the pixel stage was nonetheless executed by way of the GPU. What would it not be like if it was fashionable and the whole thing was executed in software program?

Let’s strive Unigine’s Valley benchmark instrument once more – the graphics it processes are very very like these seen in video games reminiscent of Far Cry 5; it additionally supplies a full software-based renderer, along with the usual DirectX 11 GPU route. The outcomes do not want a lot of an evaluation however working the bottom high quality model of the DirectX 11 check on the GPU gave a mean results of 196 frames per second. The software program model? A few crashes apart, the mighty check PC floor out a mean of 0.1 frames per second – virtually two thousand occasions slower.

The explanation for such a distinction lies within the math and knowledge format that 3D rendering makes use of. In a CPU, it’s the floating level models (FPUs) inside every core that carry out the calculations; the check PC’s i7-9700K has 8 cores, every with two FPUs. Whereas the models within the Titan X are totally different in design, they will each do the identical basic math, on the identical knowledge format. This explicit GPU has over 3500 models to do a comparable calculation and despite the fact that they are not clocked anyplace close to the identical because the CPU (1.5 GHz vs 4.7 GHz), the GPU outperforms the central processor by sheer unit rely.

Whereas a Titan X is not a mainstream graphics card, even a price range mannequin would outperform any CPU, which is why all 3D video games and APIs are designed for devoted, specialised {hardware}. Be happy to obtain V-ray, 3DMark, or any Unigine benchmark, and check your personal system – publish the leads to the discussion board, so we are able to see simply how properly designed GPUs are for rendering graphics in video games.

Some ultimate phrases on our 101

This was a brief run by of how one body in a 3D recreation is created, from dots in house to coloured pixels in a monitor.

At its most basic stage, the entire course of is nothing greater than working with numbers, as a result of that is all laptop do anyway. Nevertheless, an incredible deal has been omitted on this article, to maintain it centered on the fundamentals. You possibly can learn on with deeper dives into how laptop graphics are made by finishing our sequence and find out about: Vertex Processing, Rasterization and Ray Tracing, Texturing, Lighting and Shadows, and Anti-Aliasing.

We did not embody any of the particular math used, such because the Euclidean linear algebra, trigonometry, and differential calculus carried out by vertex and pixel shaders; we glossed over how textures are processed by statistical sampling, and left apart cool visible results like display house ambient occlusion, ray hint de-noising, excessive dynamic vary imaging, or temporal anti-aliasing.

However once you subsequent fireplace up a spherical of Name of Mario: Deathduty Battleyard, we hope that not solely will you see the graphics with a brand new sense of surprise, however you will be itching to search out out extra.
